Power Rescue Device
Controlled descent rescue kit for emergency response.
Read More
Height Safety Solutions
Complete height-safety kits for rescue response, controlled descent, facade work, and pole access.
Jayco organizes this range around the way people actually work at height. Instead of asking a customer to select devices, ropes, connectors, edge protection, harnesses, and storage one by one, each kit brings the required working parts together so rescue teams, maintenance crews, and field technicians can understand the application, components, and safety purpose clearly.
4
application-focused kit options
Rescue Kit
JS 17010 - Jayco Power Rescue Device
JS 17010 is a controlled rescue-descent kit built around the Jayco Power Rescue Device. It is meant for emergency or planned rescue situations where the operator needs a dependable descent device, protected rope path, secure connectors, and a transportable accessory set ready in one kit.
Best suited for
Controlled rescue descent with a full supporting accessory set.
This is a high-capacity rescue device for up to two persons. It supports controlled descent speed, wide rope compatibility, and an automatic redundant braking arrangement, while the rope grab, edge guard, lanyards, carabiner, and bag help teams manage edge transitions, victim release, equipment organization, and movement to the rescue point more confidently.
- 225 kg capacity supports rescue use for up to 2 persons, helping teams plan for worker and rescuer load.
- Approx. 0.8 m/sec descent speed helps keep lowering controlled and predictable.
- Max descent height up to 500 meters covers demanding industrial rescue scenarios.
Rescue kit support details
- JS 20038 Rope Grab: works as a catching and support device when a victim is close to an edge, helping the rescue setup manage release from the life line.
- JS 20007 Edge Guard: protects the rope where it may contact a sharp or exposed edge, reducing abrasion risk during descent or rescue handling.
- JS 20000 Carabiner: alloy-steel connector with 16 mm gate opening, 23 kN minimum breaking strength, and EN 362:2004 conformity for reliable attachment.
- JS 19002 Webbing Lanyards: 44 mm polyester webbing lanyards support controlled connection points inside the rescue arrangement.
- Inspection note: regular checks, annual testing, and seal-pack interval planning help keep the rescue device ready for emergency use.
Technical Specifications
| Rope length | 50 m, 100 m, 150 m, with custom length options. |
|---|---|
| Material | Aluminum steel. |
| Standards | ANSI Z359.4:2013, EN 1496:2017-B, EN 341:2011-1A. |
| Capacity | 225 kg, 2 persons maximum. |
| Descent speed | Approx. 0.8 m/sec, independent of descent load. |
| Max descent height | 500 meters. |
| Braking system | Automatic redundant brake system with 2 centrifugal brake drums made from steel. |
| Connector | Automatic dual-action lightweight carabiner. |
| Rope compatibility | Any rope according to EN 1891-A may be used, from 9.6 mm to 11 mm diameter. |
| Duration of use | Device unlimited; rope maximum 10 years. |
| Rope guide / inspection | Regular checks depending on use, but at least every 12 months. |
| Testing | Once a year. With seal pack, testing is required every 10 years. |
Accessories in the JS 17010 kit
These accessories complete the rescue setup by covering rope protection, worker or victim connection, edge management, and site transport. The section helps the customer understand why each item is part of the kit instead of treating the kit as only one device.

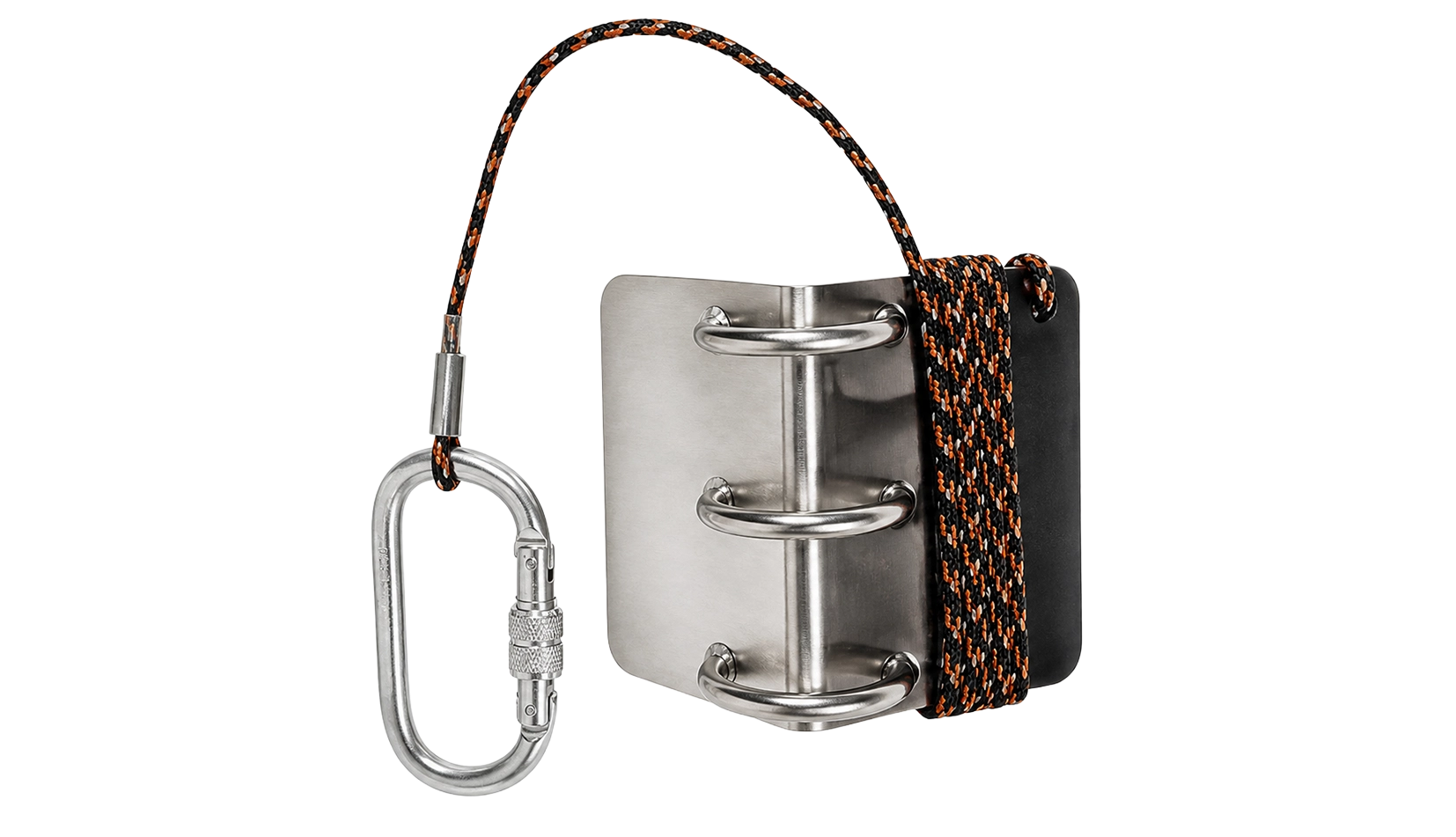

JS 20007
Edge Guard
Edge guard protects the rope where it passes over an exposed edge, helping reduce abrasion and keeping the rope path more controlled during rescue movement.

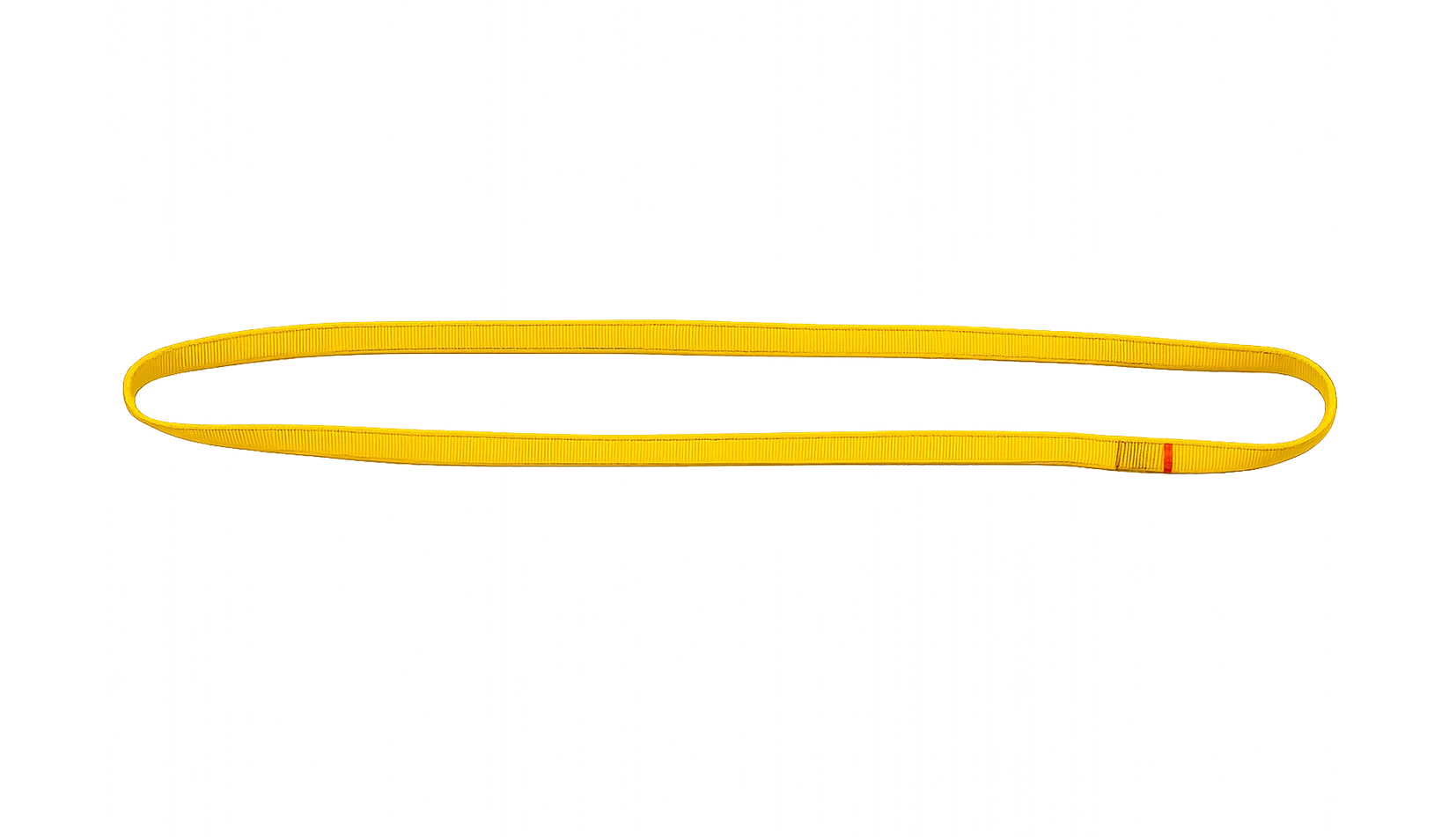

JS 19002
Webbing Lanyard
44 mm wide polyester webbing provides a supporting connection element within the rescue setup, helping organize load transfer and attachment points.

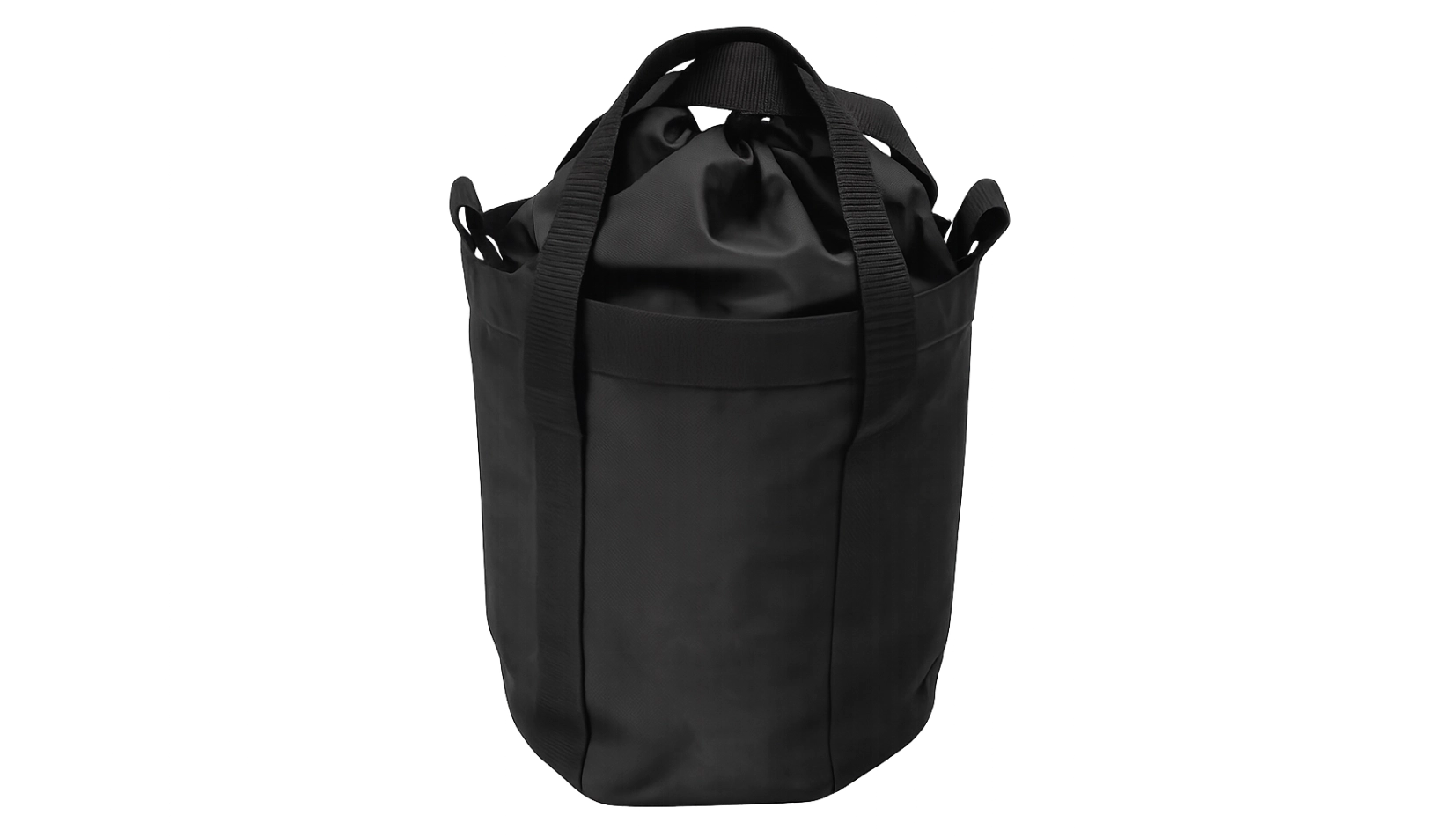

Kit Bag
Bag for Rescue Kit
The carry bag keeps the rescue device and accessories together so the full kit can be stored, moved, and identified quickly during site response.

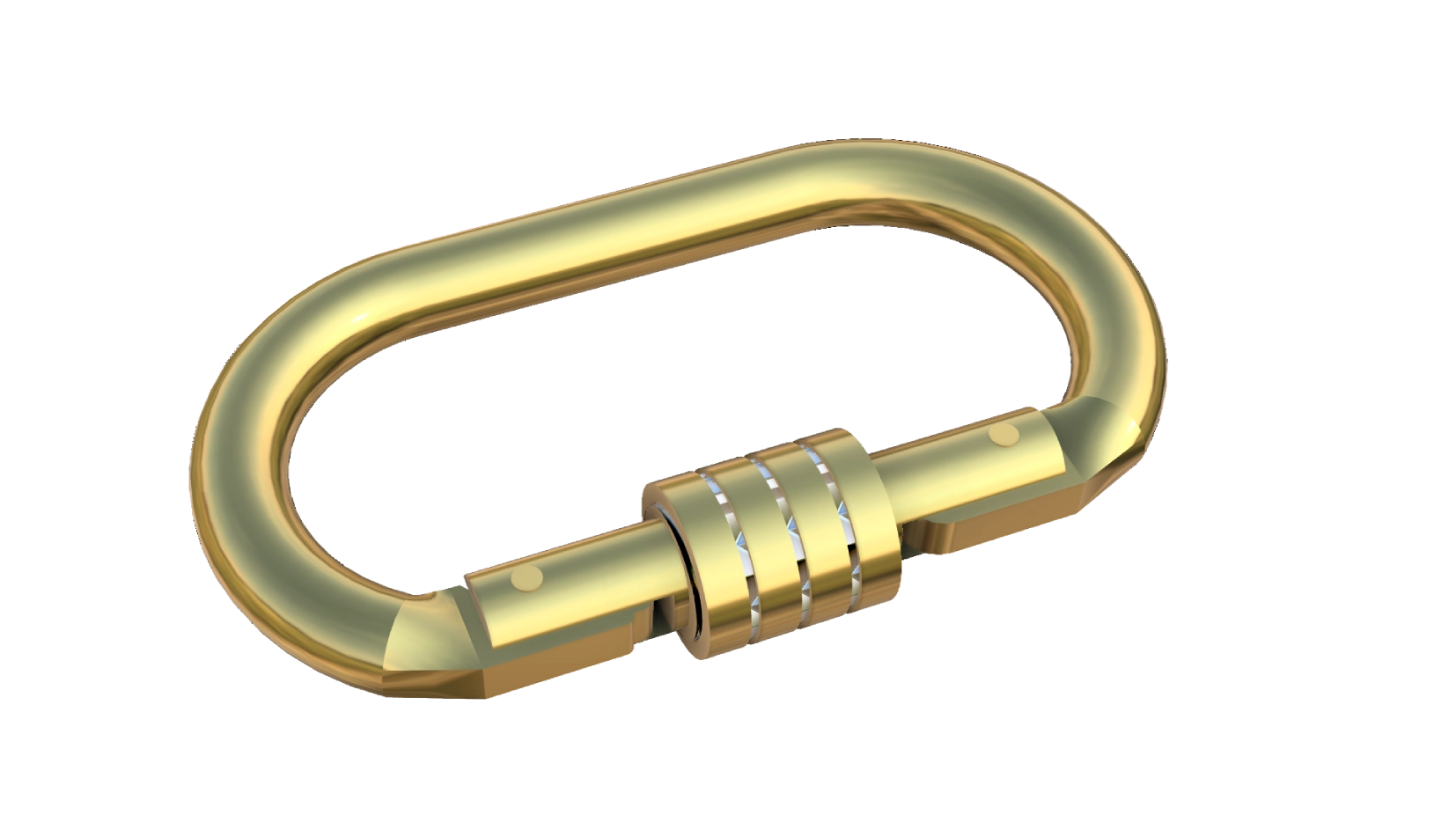

JS 20000
Carabiner
Main connector supplied with the kit for secure rescue-system attachment between device, lanyard, and compatible anchorage or support elements.
JS 20038
Rope Grab
Catching device used near edge conditions to support victim handling and help the rescue device lift or release the person from the life line.
Included components
| Component | Reference | Purpose |
|---|---|---|
| Rope Grab | JS 20038 | Catching device for victim support near the edging area and release from the life line. |
| Edge Guard | JS 20007 | Divides and protects the rope at contact points. |
| Carabiner | JS 20000 | Main connector for the rescue setup. |
| Webbing Lanyards | JS 19002 | Supporting webbing connection points for the kit. |
| Carry Bag | Included | Storage and transport for the rescue kit. |
Rescue + Lifting
JS 17011 - Rescue Kit with Power Drill
JS 17011 keeps the same rescue-device base as JS 17010 and extends it into an all-in-one descending, rescue, and lifting setup with the JS 26002 Power Drill Kit. It is suited for rescue plans where the team may need to lower a person, raise a person, or reposition load using assisted lifting support.
The main rescue-device specifications remain aligned with the standard Power Rescue Device, while the added JS 26002 kit introduces rechargeable power support for lifting tasks. This makes the kit easier to understand for sites that want one rescue package covering descent, rescue response, and powered lifting assistance.
- All-in-one descender, rescue, and lifting device for more flexible rescue planning.
- Same 225 kg / 2-person rescue platform as the standard Power Rescue Device kit.
- Includes drill, rechargeable batteries, and charger for assisted lifting work.
Added Lifting Support Over JS 17010
- The base rescue-device values stay aligned with the standard Power Rescue Device platform, so descent performance remains familiar.
- The major difference is the JS 26002 Power Drill Kit, which adds assisted lifting support for rescue movement.
- The power kit includes 2 rechargeable batteries and 1 charger, supporting repeated site readiness between uses.
- It is ideal when the rescue method requires both descent and lifting capability without selecting a separate lifting package.
Upgrade point
Choose this kit when rescue work also needs lifting support from a power drill system.
Technical Specifications
| System type | All-in-one descender, rescue, and lifting device with power drill support. |
|---|---|
| Rope length | 50 m, 100 m, 150 m, with custom length options. |
| Material | Aluminum steel. |
| Standards | ANSI Z359.4:2013, EN 1496:2017-B, EN 341:2011-1A. |
| Capacity | 225 kg, 2 persons maximum. |
| Descent speed | Approx. 0.8 m/sec, independent of descent load. |
| Max descent height | 500 meters. |
| Braking system | Automatic redundant brake system with 2 centrifugal brake drums made from steel. |
| Connector | Automatic dual-action lightweight aluminum carabiner. |
| Rope compatibility | Any rope according to EN 1891-A may be used, from 9.6 mm to 11 mm diameter. |
| Rope guide / inspection | Regular checks depending on use, but at least every 12 months. |
| Duration of use | Device unlimited; rope maximum 10 years. |
| Testing | Once a year. With seal pack, testing is required every 10 years. |
Accessories in the JS 17011 kit
JS 17011 includes the same rescue accessories plus the dedicated drill kit, giving teams a complete view of how descent, edge protection, connection, storage, and powered lifting support come together.
JS 20038
Rope Grab
The same victim-support rope grab continues in the drill-assisted rescue kit, helping manage rescue release and rope control near edges.
JS 20007
Edge Guard
Protects the rope path and keeps the working line separated at edge contact zones during lowering or lifting operations.
JS 19002
Webbing Lanyard
44 mm polyester webbing lanyard included as part of the rescue and lifting arrangement for controlled support connection.
JS 20000
Carabiner
Primary connector supplied with the drill-assisted rescue kit for secure attachment within the rescue system.
Kit Bag
Bag for Rescue Kit
Carry bag supplied to keep the rescue device, standard accessories, and drill support items together for easier storage and transport.

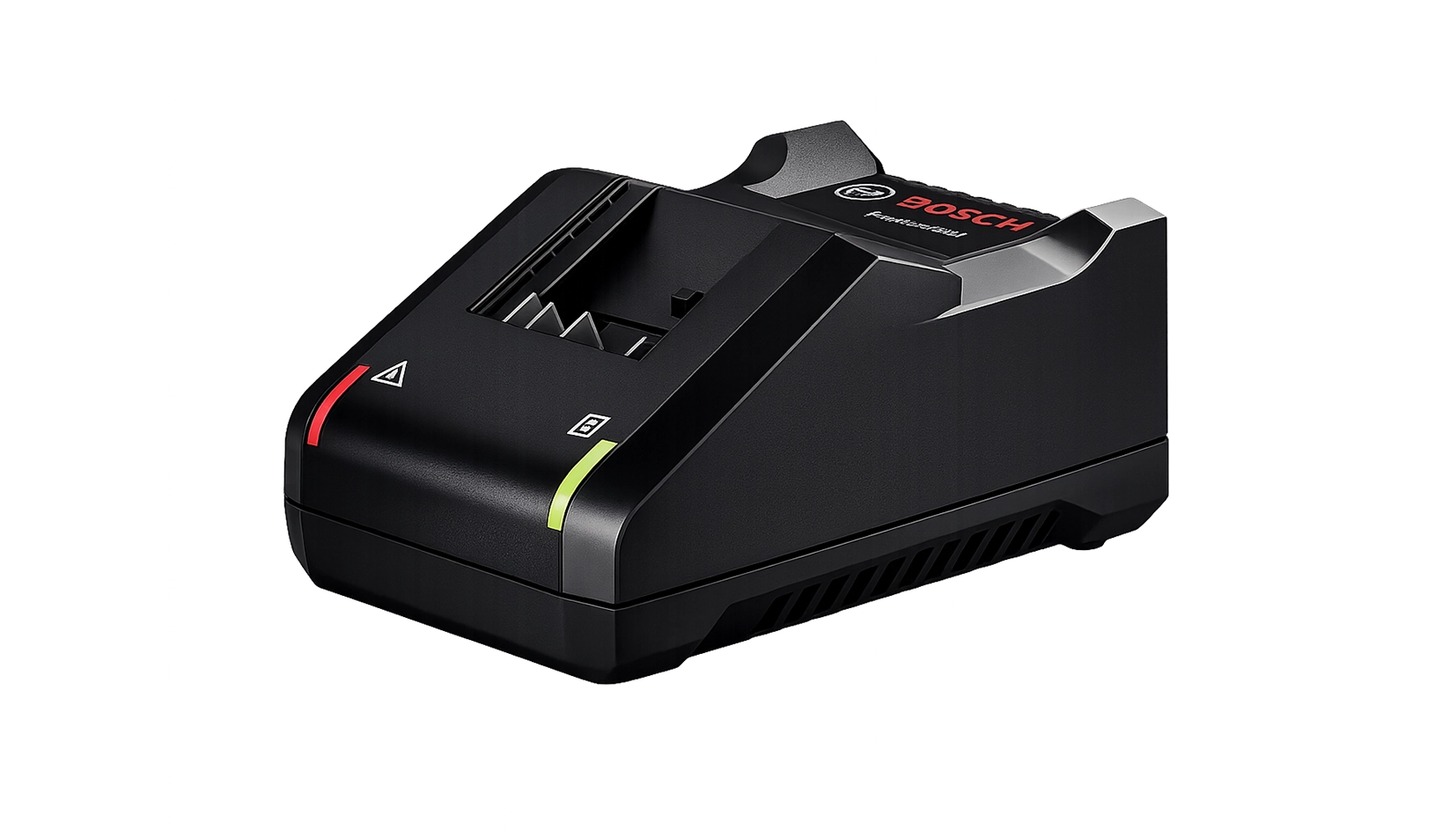

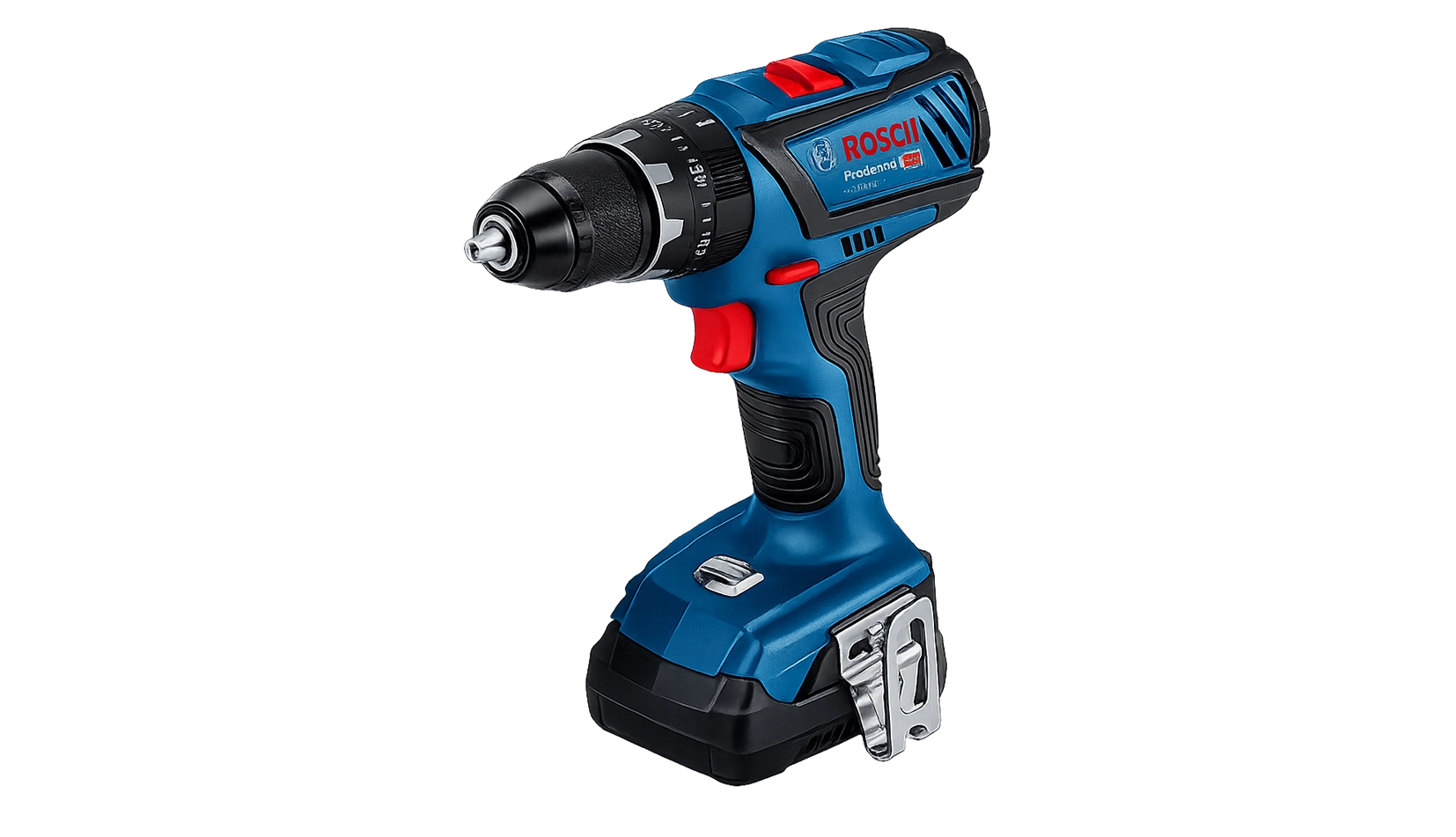

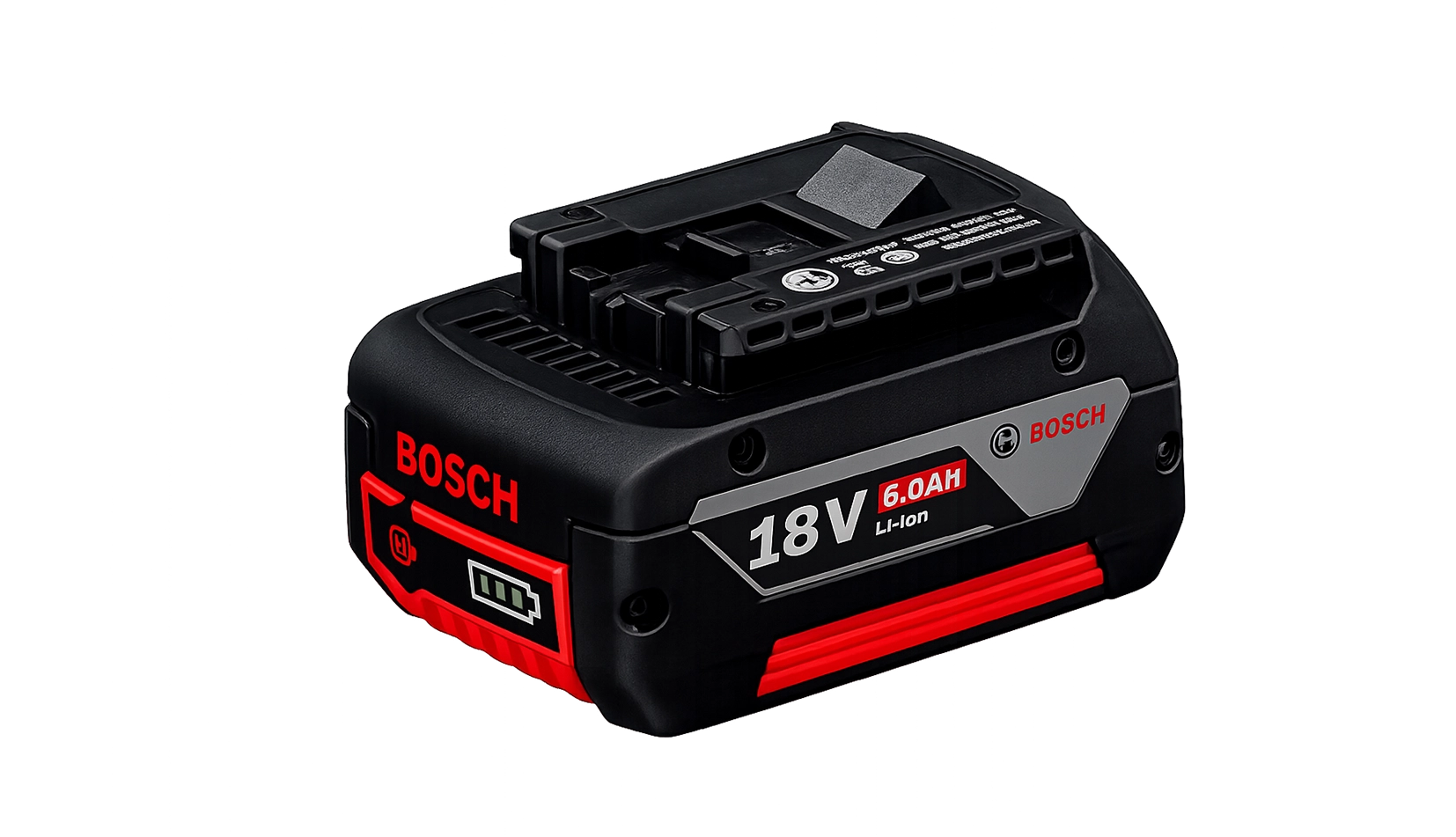

JS 26002
Rechargeable Battery
Battery Charger
Power Drill
Power Drill Kit for Rescue Device
This kit contains the power drill used for rescue-device lifting support, 2 rechargeable batteries, and 1 battery charger so the powered lifting function is supplied as a complete accessory pack.
Rechargeable Battery
Battery Charger
Power Drill
Included with the upgraded kit
| Component | Reference | Key note |
|---|---|---|
| Rope Grab | JS 20038 | Victim release and rope support near edge conditions. |
| Edge Guard | JS 20007 | Protects and separates the rope path. |
| Webbing Lanyards | JS 19002 | 44 mm wide polyester webbing, EN 795:2012. |
| Carabiner | JS 20000 | 19 mm gate opening, 23 kN minimum breaking strength, EN 362:2004. |
| Power Drill Kit | JS 26002 | Includes 2 rechargeable batteries and 1 battery charger. |
| Rescue Bag | Included | Keeps the rescue and drill accessories together as one kit. |
Descending Kit
JS 17003 - Maintenance / Window Cleaning Kit
JS 17003 is a maintenance and window-cleaning kit for controlled descending work. It is centered on the Jayco Descender and combines working rope, fall-arrest support, body harness, podium chair, connector, and storage into one suspended-access setup for facade and industrial maintenance tasks.
The descender is a robust descender and belay device for rope access and rescue, with an application profile suited to industrial descending work. It supports easy rope feeding by the belayer, automatic locking when used correctly, and a dedicated descent handle so the operator can keep abseiling controlled during facade maintenance or window-cleaning work.
- EN 341 rated load from 30 kg to 180 kg for controlled descent use.
- Max descent height of 190 m for tall building and industrial access tasks.
- 11 mm rope diameter keeps the device and rope selection clearly matched.
Descender behavior in use
- The descender is described as a robust descender and belay device.
- Its application areas make it suitable for rope access and rescue work.
- The model's cam movement is especially suitable for industrial use.
- The descent handle is intended to keep abseiling secured and controlled.
- It also supports rope access and rescue use with abseiling up to 225 kg load.
Technical Specifications
| Main device | Jayco Descender (JS 20045). |
|---|---|
| Work type | Maintenance and window cleaning, only for descending. |
| Rated load | As per EN 341: maximum / minimum rated load 30 kg to 180 kg. |
| Max descent height | 190 meters. |
| Rope diameter | 11 mm. |
| Handling note | The belaying person can feed and take rope easily. |
| Safety note | Locks automatically in case of a fall when used correctly. |
Accessories in the JS 17003 kit
The full descending kit is organized below so visitors can understand the device, ropes, fall-protection support, harness, seating, connector, and storage parts together. This is especially useful for buyers planning facade work, window cleaning, or industrial suspended access.
A / JS 20045
Jayco Descender
Robust descender and belay device for rope access and rescue, giving the operator controlled abseiling through a dedicated descent handle.

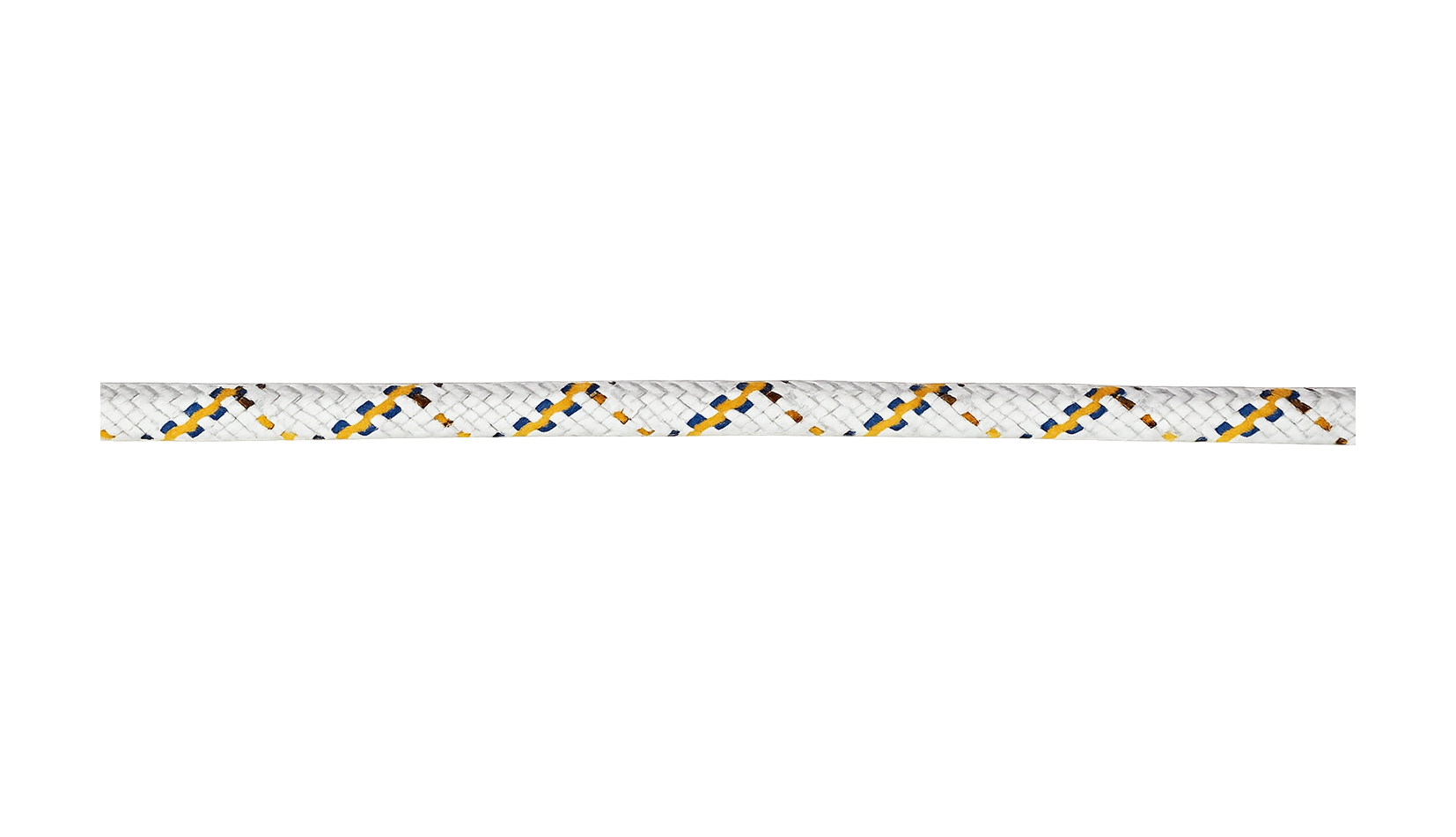

B / JS 22005
Jayco Kernmantle Rope
Kernmantle rope used as the main working rope in the descending setup, supporting the controlled movement handled through the descender.

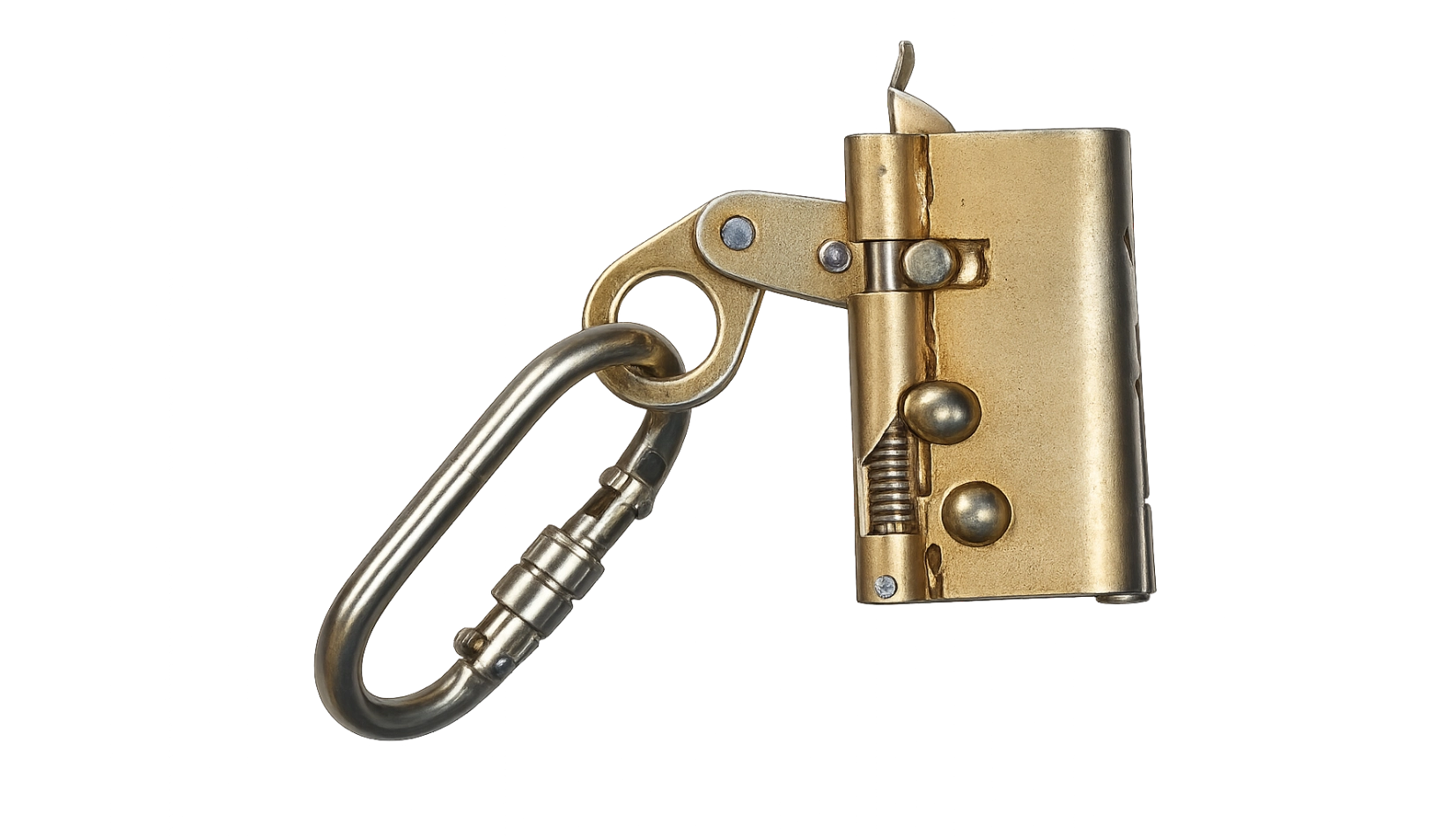

C / JS 21001
Jayco Fall Arrester
Fall-arrest component included alongside the descender to support a safer suspended-access system.

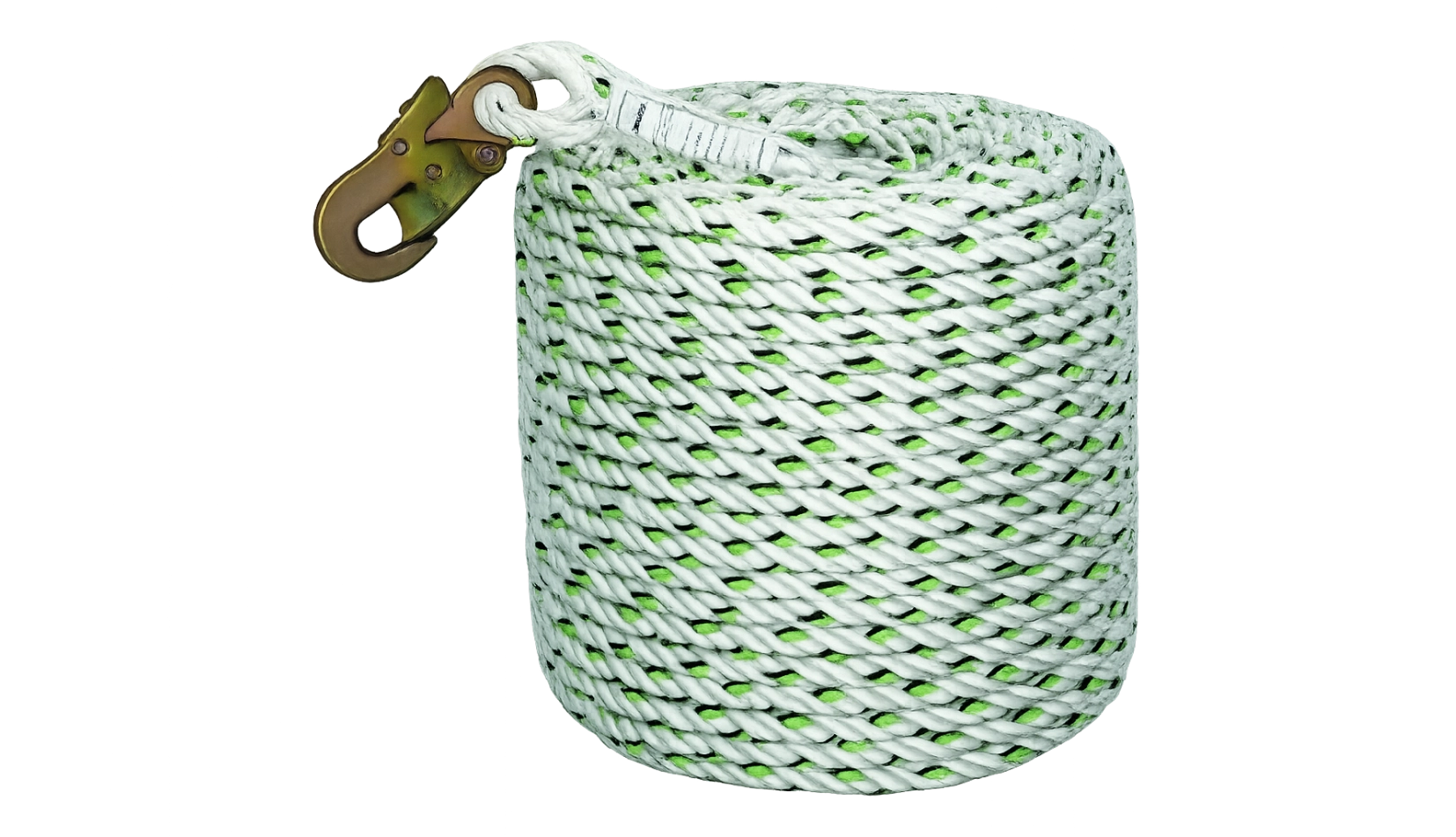

D / JS 22000
Jayco Polyamide Rope
Additional polyamide rope included as part of the descending kit so the working and support rope requirements remain clear.
E / JS 18004
Full Body Harness
Full body harness used as the primary body-support component, keeping the worker connected to the descending and fall-protection setup.
F / JS 18016
Podium Chair
Suspended seating component for window-cleaning and facade work, improving worker comfort during longer suspended tasks.

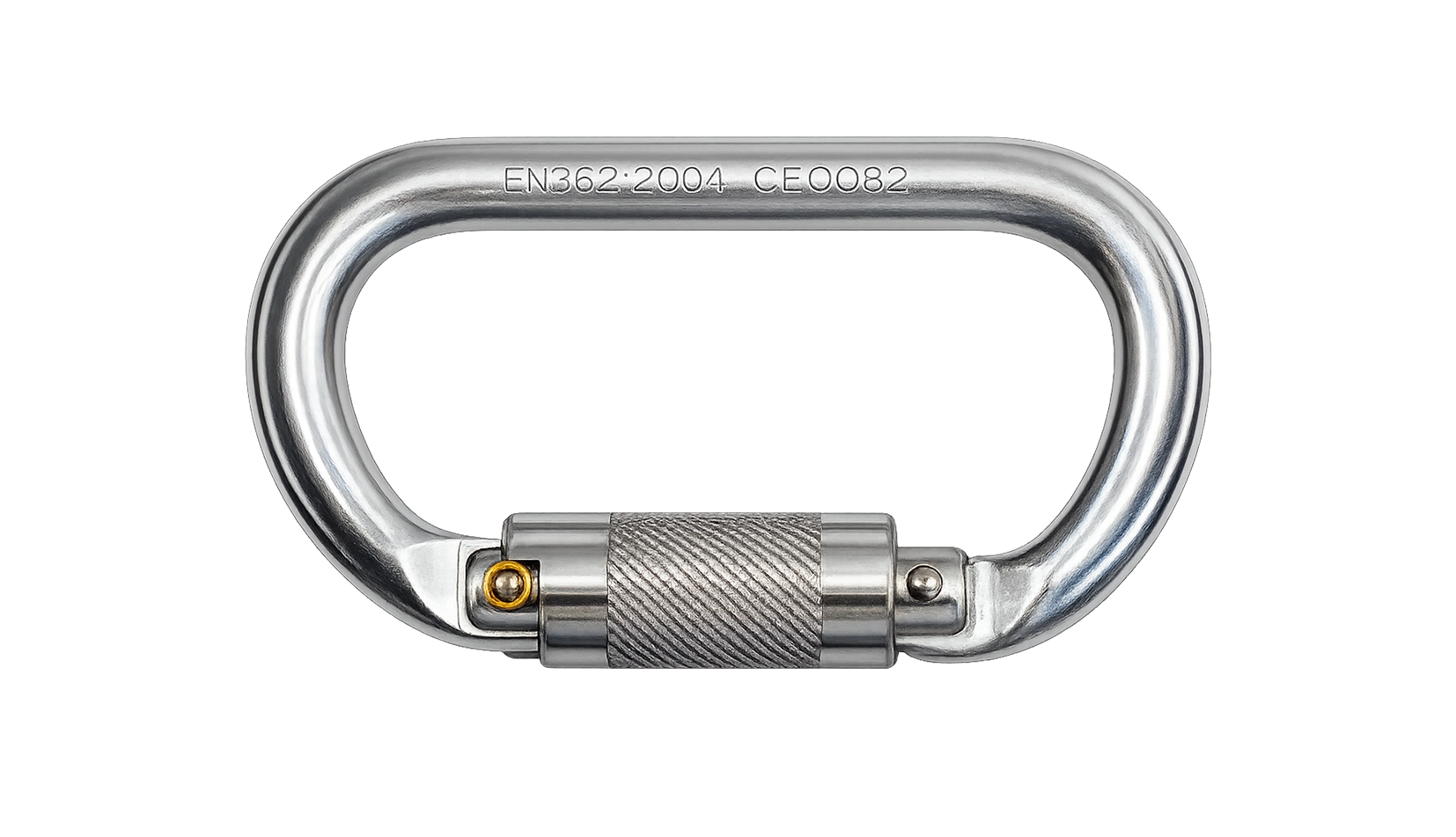

G / JS 20000
Jayco JSC-H6 Carabiner
Connector supplied as part of the descending kit for linking compatible components in the suspended-access system.
H / Bag
Bag for Above Kit
Carry bag for storing the descending-kit components together so the full set remains organized between jobs.
Kit composition
| Ref. | Component | Reference |
|---|---|---|
| A | Jayco Descender | JS 20045 |
| B | Jayco Kernmantle Rope | JS 22005 |
| C | Jayco Fall Arrester | JS 21001 |
| D | Jayco Polyamide Rope | JS 22000 |
| E | Full Body Harness Art No. | JS 18004 / JSB160 |
| F | Podium Chair | JSB 13 / JS 18016 |
| G | Jayco JSC-H6 Carabiner | JS 20000 |
| H | Carry Bag | Included |
Pole Access Kit
JS 17006 - Pole Climbing Kit with FRP Rod
JS 17006 is a pole-climbing kit for crews working on poles and similar elevated structures. It combines a foldable FRP rod, scaffold hook, rope ladder, fall arrester, polyamide rope, harness, and storage bag so field teams can plan pole access with the reach, climbing support, and fall-arrest connection in one package.
This kit is built around practical field access. The FRP rod helps place or manage the access arrangement, the rope ladder supports climbing, the fall arrester and rope provide guided protection, and the harness keeps the worker connected throughout the movement.
- Foldable FRP rod up to 10 m helps support access setup from ground or lower-level positions.
- 10 meter rope ladder provides the climbing path for pole and similar elevated access work.
- Fall arrester for 14 mm polyamide rope keeps worker protection tied to a compatible rope system.
Fall arrester and harness notes
- The rope-grab fall arrester helps protect the worker during ascent or descent on a compatible rope line.
- It is useful where the work position changes and the worker needs guided rope movement instead of a fixed short connection.
- Zinc plating helps protect the fall arrester from corrosion during outdoor and field use.
- The gravity pin helps prevent the fall arrester from being fed or loaded upside down during setup.
- The harness uses adjustable shoulder and leg straps, dual-color differentiation, and two front textile loops for easier connection to the fall arrester.
Field use
Built for pole access where rod reach, rope ladder support, and fall arrest work together.
Technical Specifications
| FRP rod | JAYCO FRP Rod / ACS-0069 10/5 (JS 20010), foldable, length up to 10 m. |
|---|---|
| Hook | Teles FS110 (JS 20009), steel scaffold hook with self-closing and self-locking action. |
| Rope ladder | Jayco Rope Ladder (JS 20013), aluminum ladder with polyamide rope, 10 m length. |
| Fall arrester | Jayco Fall Arrester (JS 20001), for 14 mm polyamide rope. |
| Harness | JS 18013 / JSB16 with 44 mm polyester webbing and 25 kN minimum breaking strength. |
| Harness conformity | Conforms to EN 361:2002. |
Accessories in the JS 17006 kit
The full pole-climbing kit is shown component by component so visitors can understand how reach, climbing access, fall arrest, body support, rope, and transport work together at site.
A / JS 20010
JAYCO FRP Rod / ACS-0069 10/5
Foldable FRP rod with length up to 10 meters, used to support pole-access setup before the worker begins climbing.

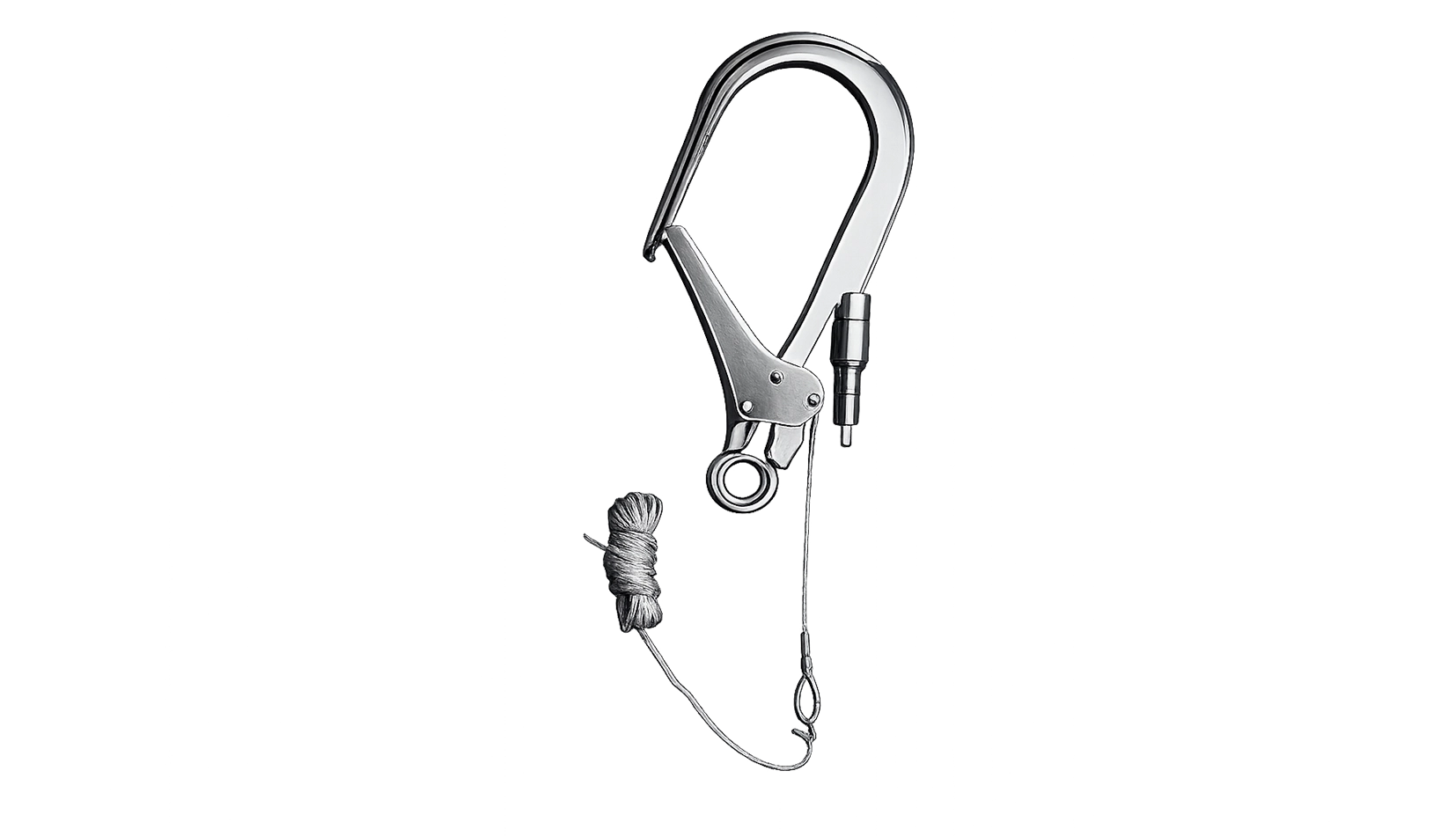

B / JS 20009
Teles FS110
Steel scaffold hook with self-closing and self-locking action for secure attachment during access setup.

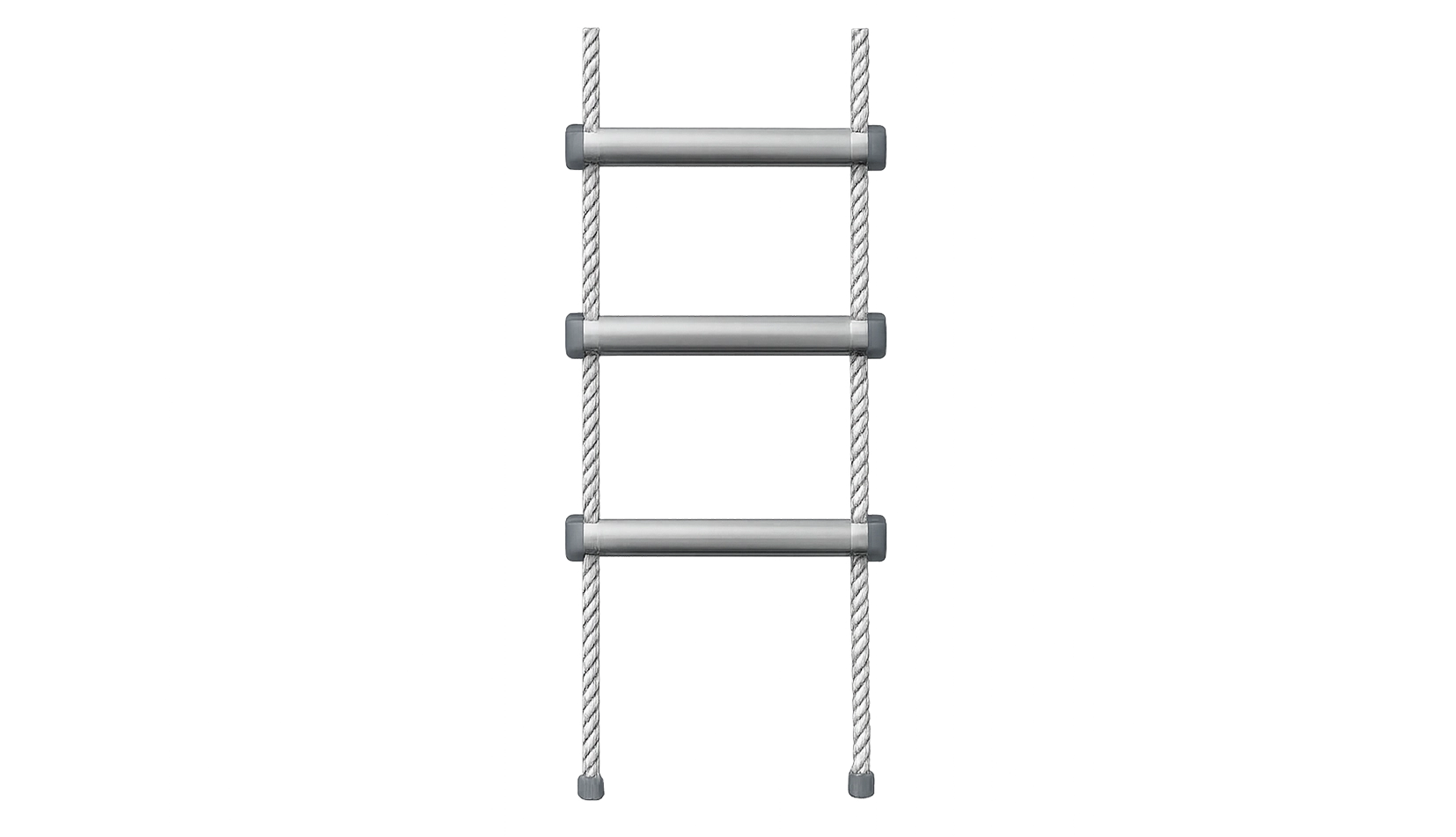

C / JS 20013
Jayco Rope Ladder
Aluminum rope ladder with polyamide rope, supplied in 10 meter length to create the actual climbing route.
D / JS 20001
Jayco Fall Arrester
Designed for 14 mm polyamide rope to help protect the worker during ascent or descent on the pole-access route.
E / JS 22000
Jayco Polyamide Rope
Polyamide rope used in the pole-climbing kit as the compatible rope support for guided fall-arrest movement.

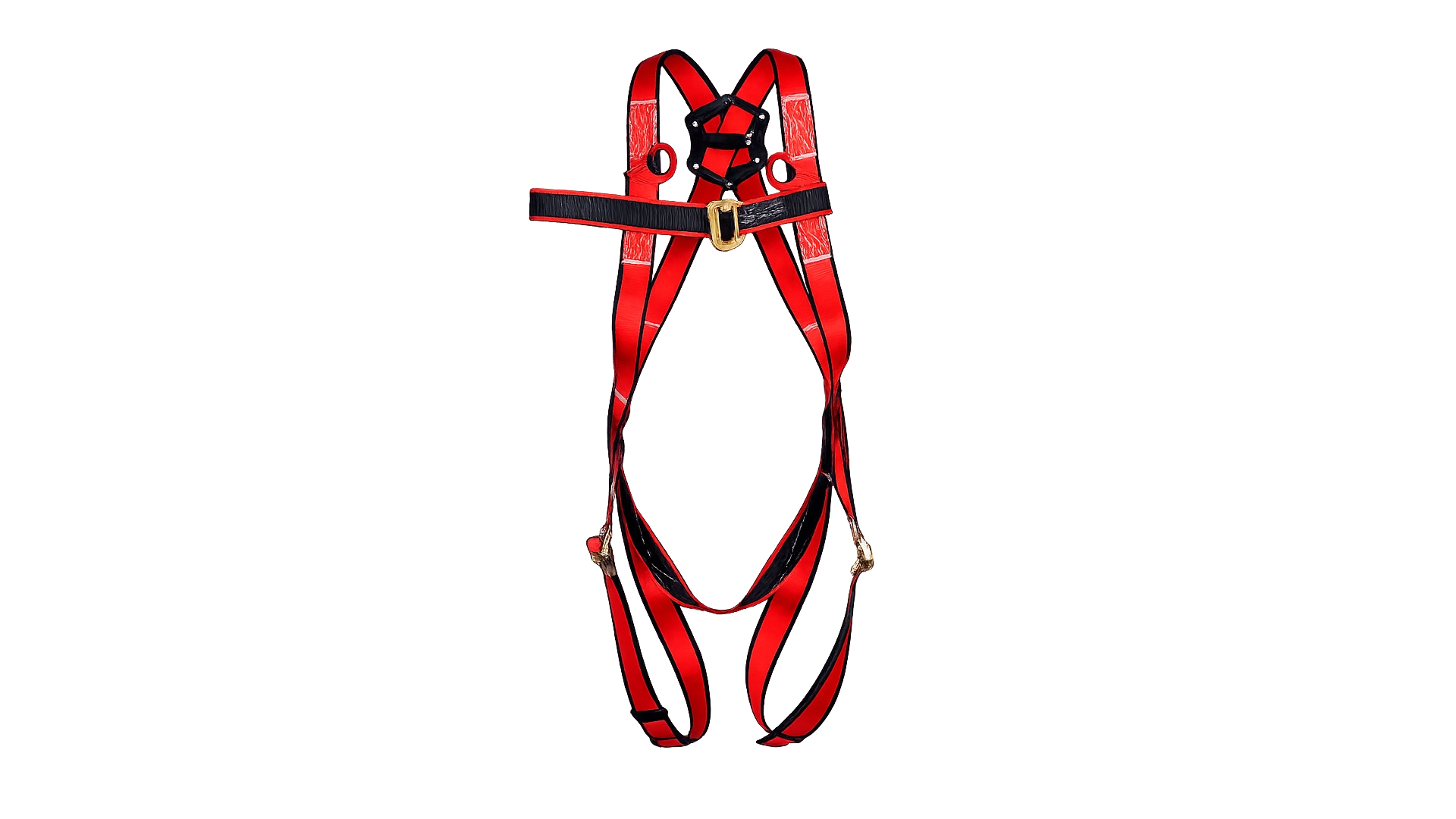

F / JS 18013
Harness
Harness with adjustable shoulder and leg straps, dual-colour scheme, and two front textile loops for direct fall-arrester connection.
G / Bag
Bag for Above Kit
Bag included for keeping the pole-climbing components together, making the field kit easier to carry, store, and issue to crews.
Kit composition
| Ref. | Component | Reference |
|---|---|---|
| A | JAYCO FRP Rod / ACS-0069 10/5 | JS 20010 |
| B | Teles FS110 | JS 20009 |
| C | Jayco Rope Ladder | JS 20013 |
| D | Jayco Fall Arrester | JS 20001 |
| E | Jayco Polyamide Rope | JS 22000 |
| F | Harness | JS 18013 / JSB16 |
| G | Carry Bag | Included |
Where these height safety kits are typically used.
These application visuals connect each kit with real work-at-height scenarios: rescue response, drill-assisted lifting, facade maintenance, crane-area rescue, building abseil work, and pole access. The goal is to help customers identify the right kit by work method, not just by product code.

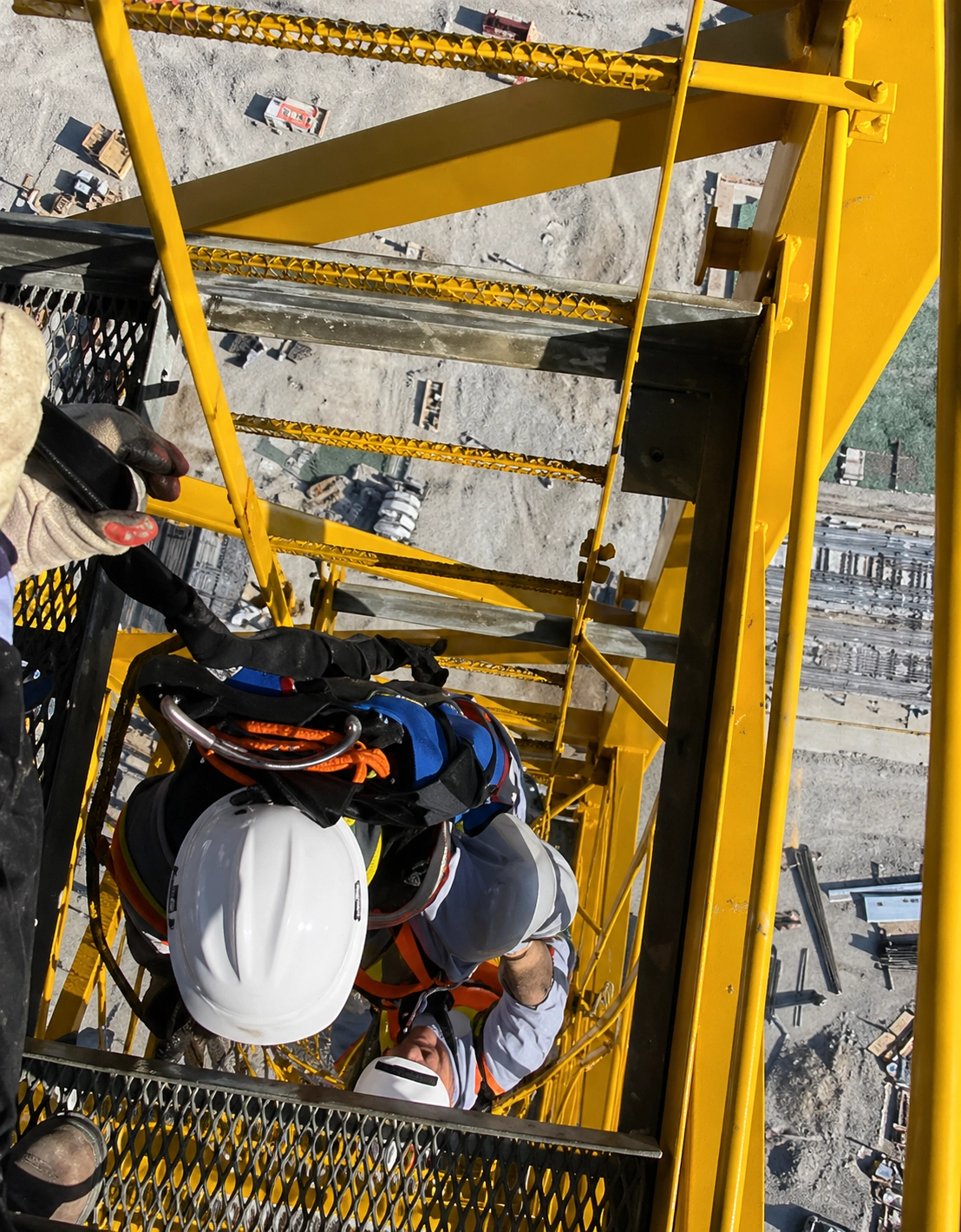

Rescue access with controlled descent support

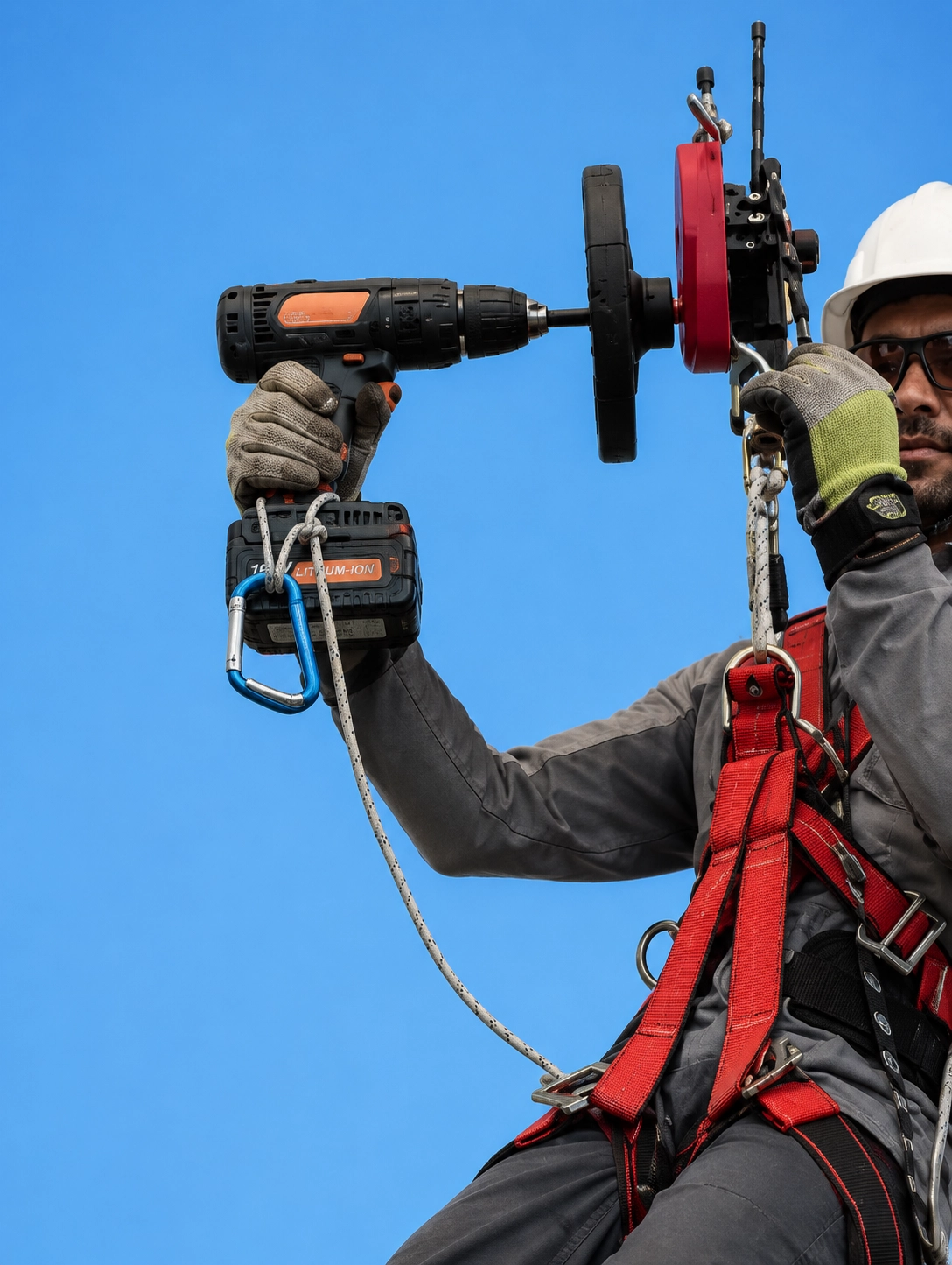

Drill-assisted rescue and lifting

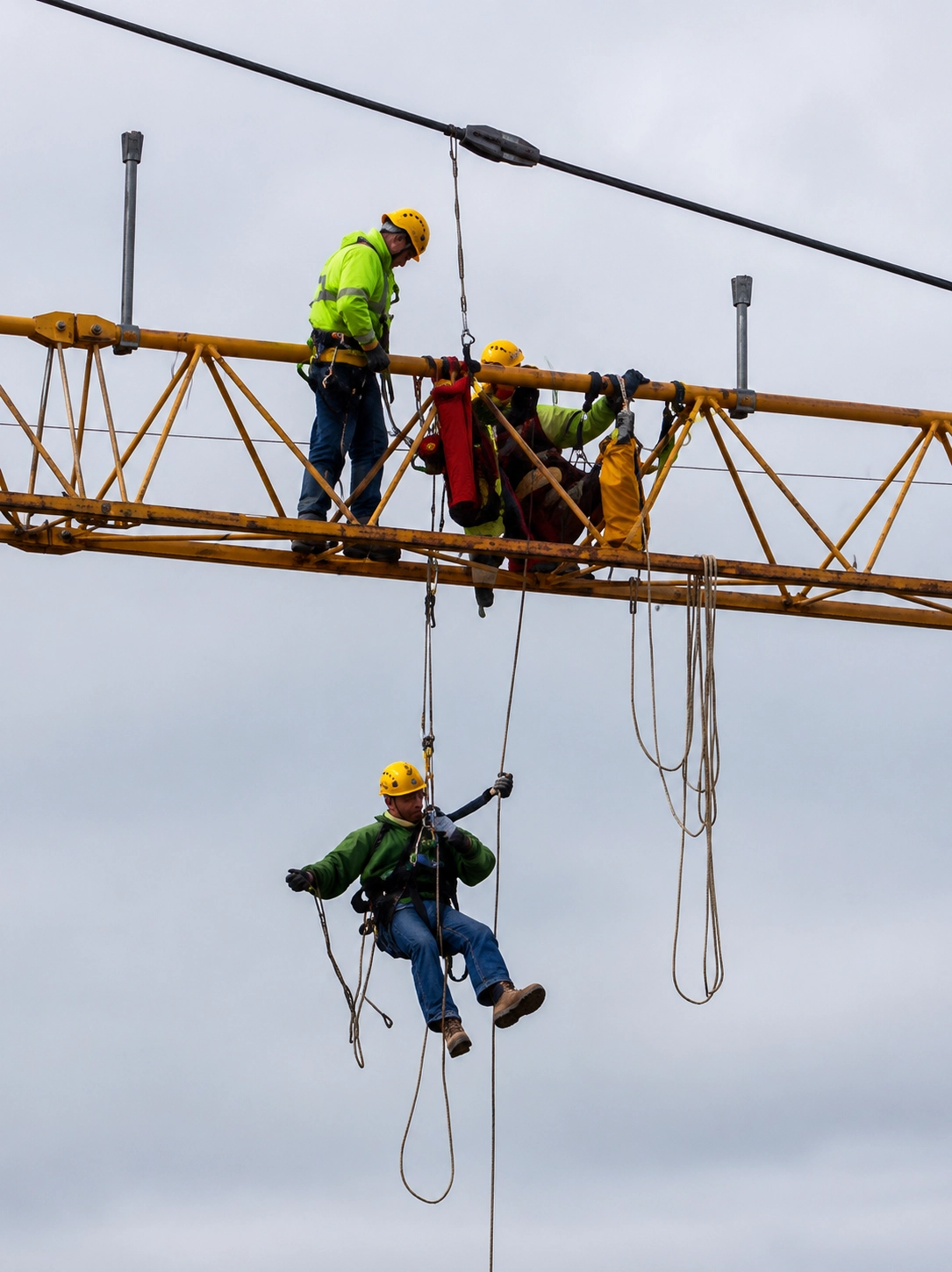

Crane rescue and suspended response

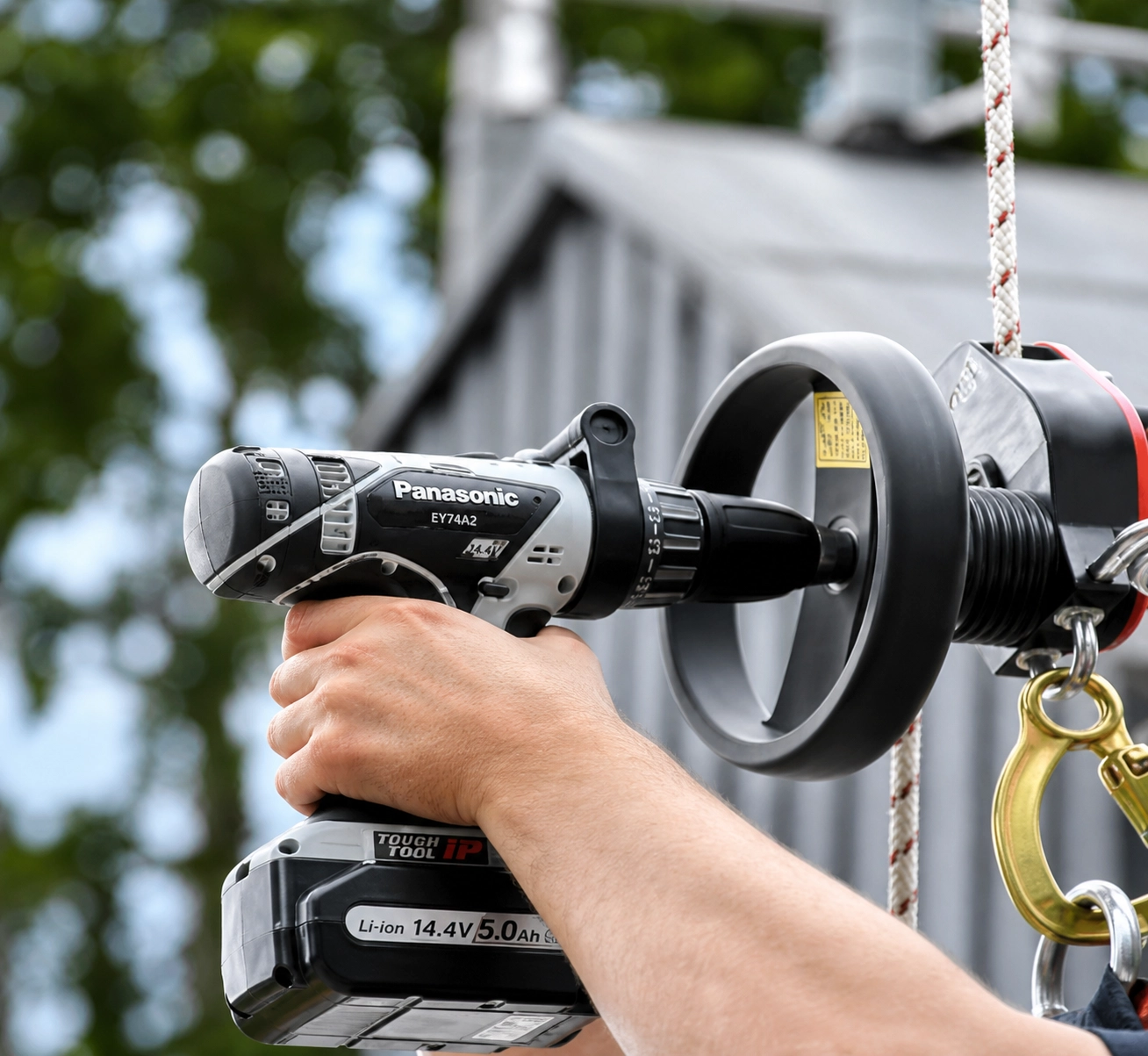

Power drill assisted device operation

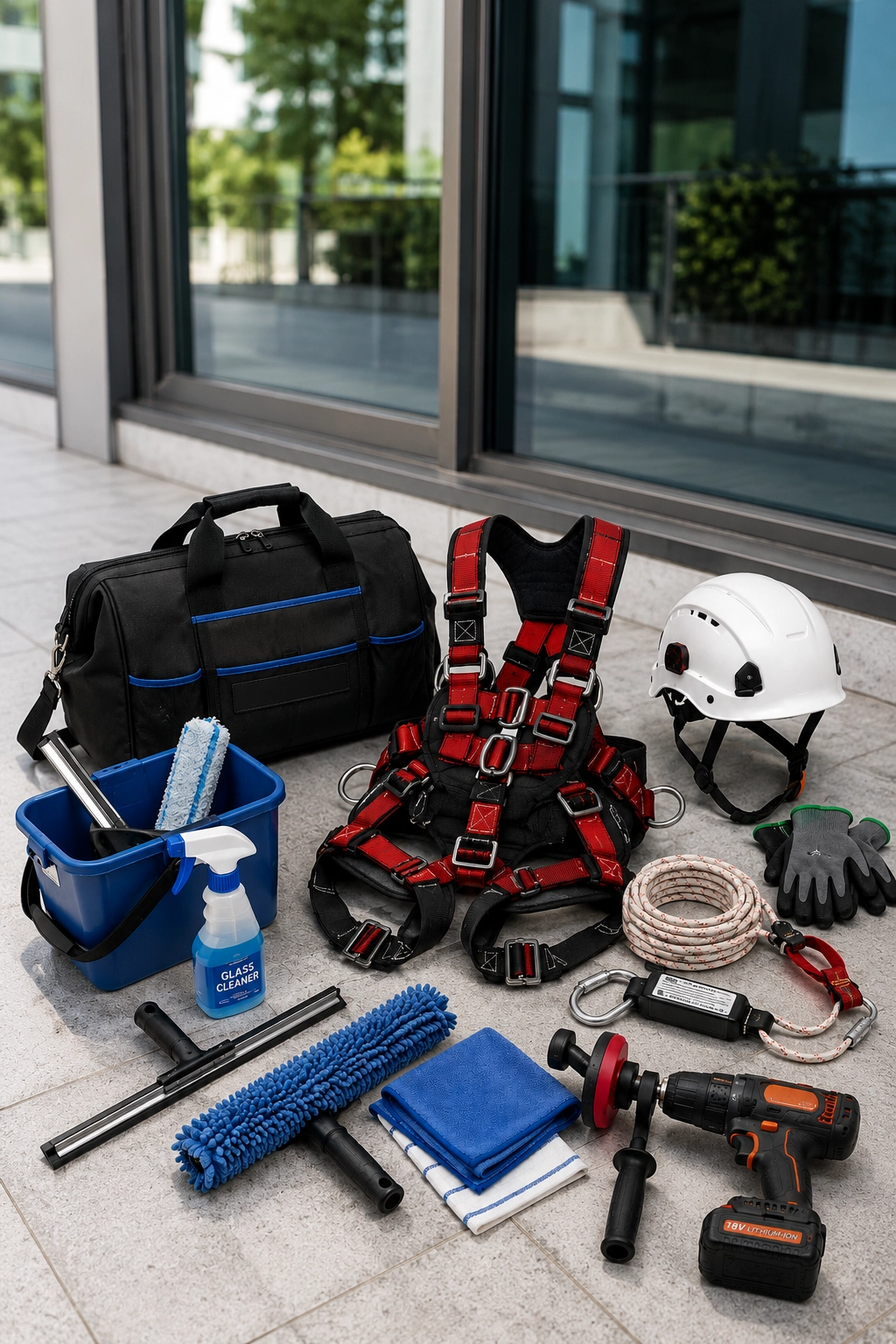

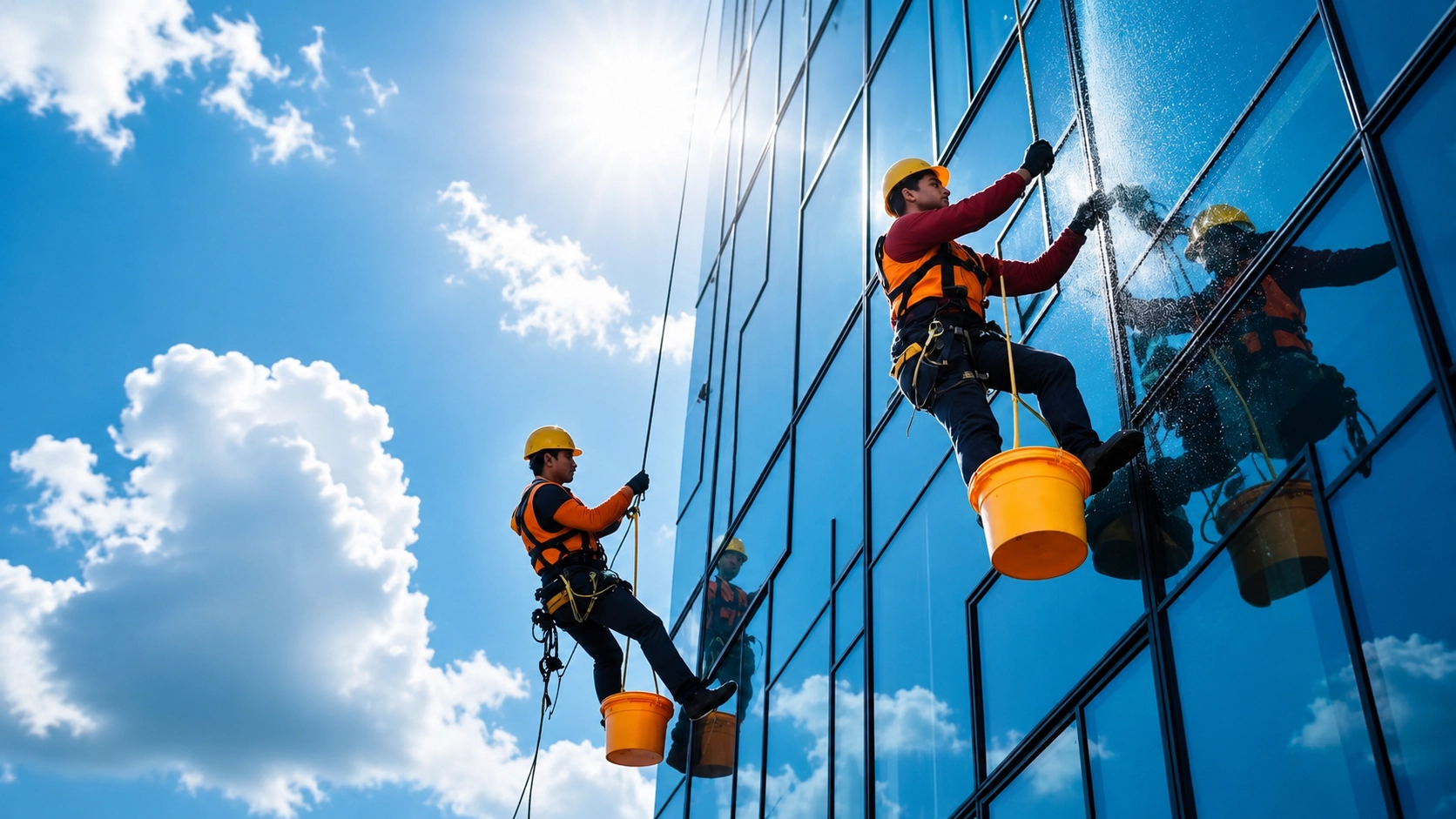

Suspended facade and maintenance work

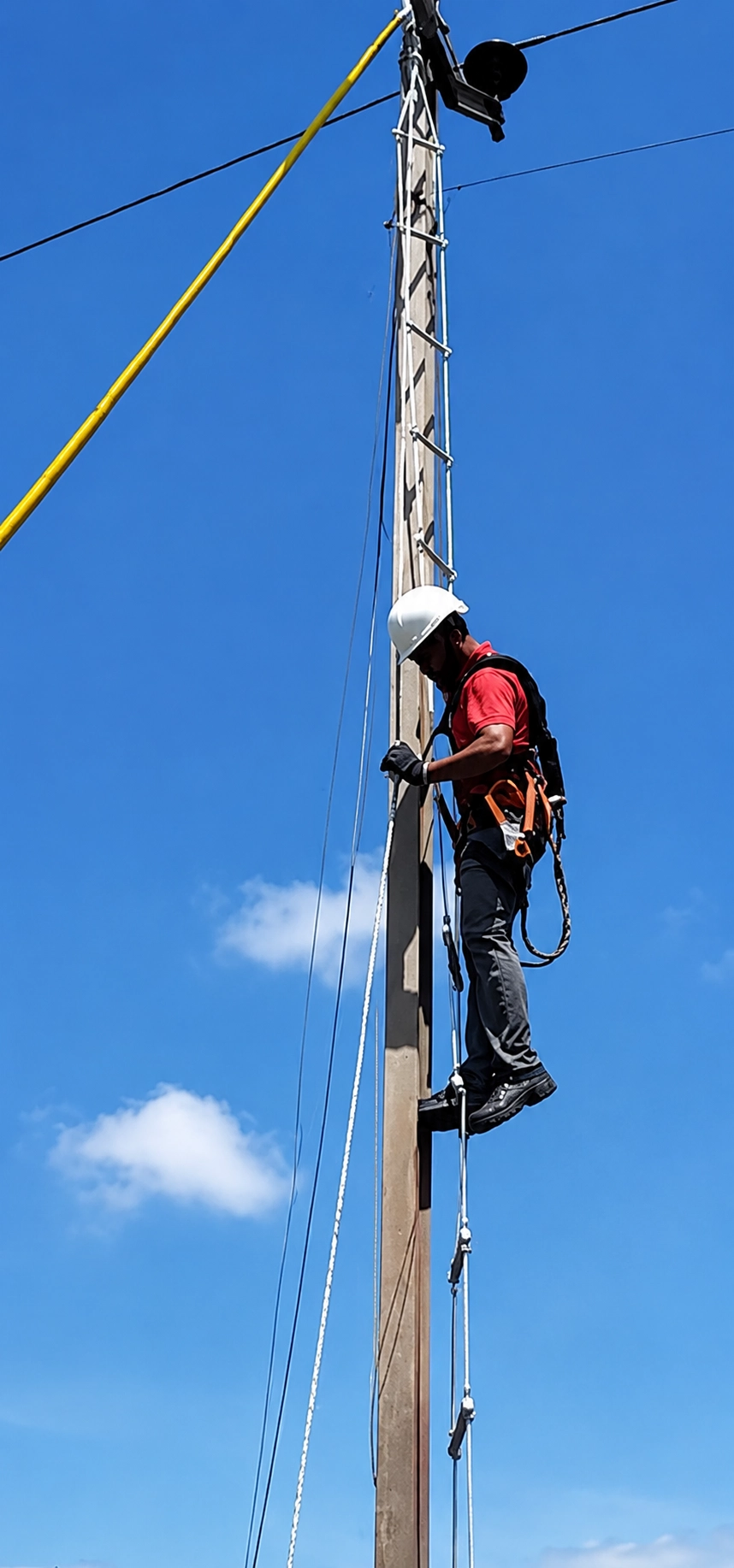

Pole access with ladder, rope, and fall-arrest support

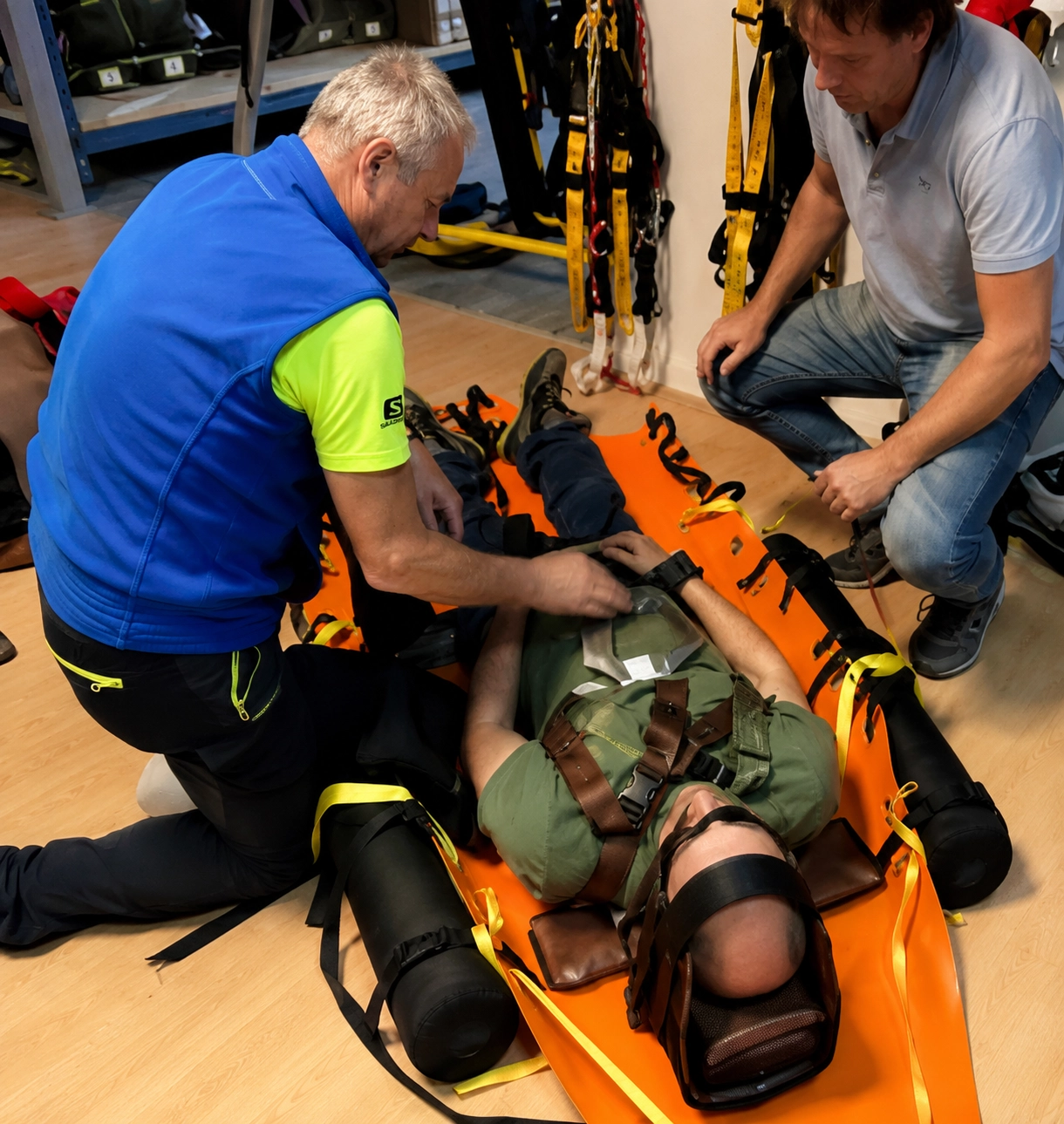

Industrial rescue preparation and team response

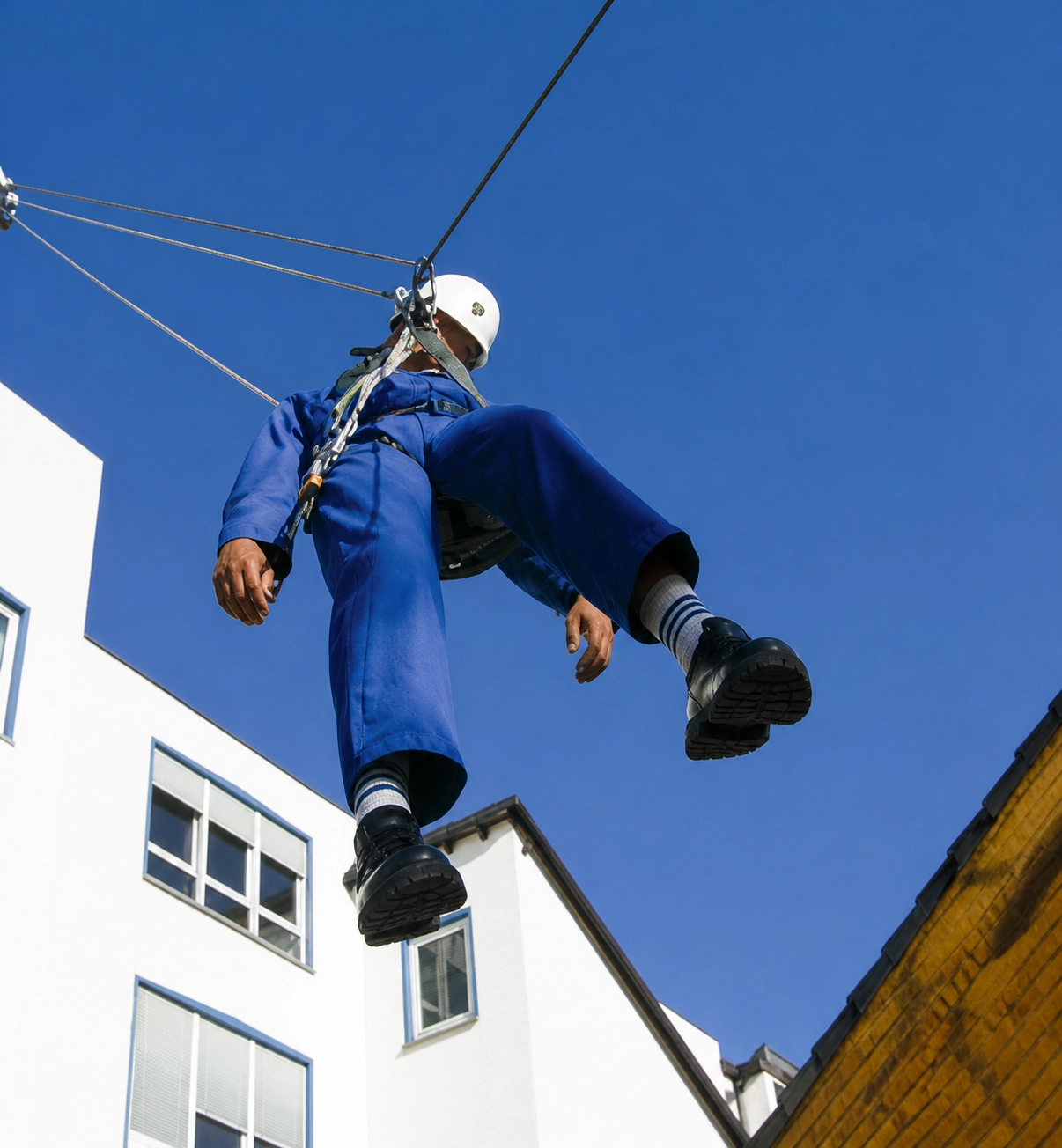

Building abseil work with rope safety support
